Cast frames

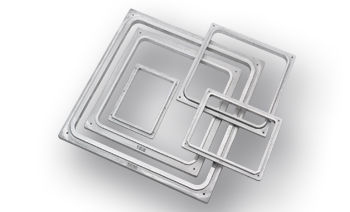

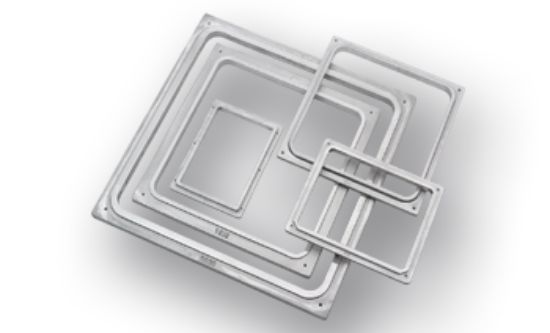

Different types of cast frames made from aluminium and stainless steel
Be the first to review this product
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cast frames made of aluminium and stainless steel especially for the electronics industry:

Cast frames

  • Milled on both sides
  • All sides deburred
  • Individual inserts possible
  • For high fabric tensions

Type 810

Dimension:

  • Outer Dimension 245 x 302 mm
  • Inner Dimension 199 x 255 mm
  • Frame height/thickness: 19 mm
  • Thread: 4x M6
  • Thread dimension 215,9 x 273,06 mm load capacity: 600kg

Type 1010

Dimension:

  • Outer Dimension 300 x 300 mm
  • Inner Dimension 250 x 250 mm
  • Frame height/thickness: 20 mm
  • Thread: 4x M6
  • Thread dimension : 330 x 330 mm

Type 1212

Dimension:

  • Outer Dimension 355 x 355mm
  • Inner Dimension 305 x 305 mm
  • Frame height/thickness: 25,5 mm
  • Thread: 4x M6
  • Thread dimension : 330 x 330 mm

Type 1515

Dimension:

  • Outer Dimension 450 x 450 mm
  • Inner Dimension 381 x 381 mm
  • Frame height/thickness: 25 mm
  • Thread: 4x M6
  • Thread dimension : 407 x 407 mm

Type 2020

Dimension:

  • Outer Dimension 584 x 584mm
  • Inner Dimension 508 x 508 mm
  • Frame height/thickness: 25,5 mm
  • Thread: 4x M6
  • Thread dimension : 533 x 533 mm
SKU: Cast frames

Cast frames made of aluminium and stainless steel especially for the electronics industry:

Cast frames

  • Milled on both sides
  • All sides deburred
  • Individual inserts possible
  • For high fabric tensions

Type 810

Dimension:

  • Outer Dimension 245 x 302 mm
  • Inner Dimension 199 x 255 mm
  • Frame height/thickness: 19 mm
  • Thread: 4x M6
  • Thread dimension 215,9 x 273,06 mm load capacity: 600kg

Type 1010

Dimension:

  • Outer Dimension 300 x 300 mm
  • Inner Dimension 250 x 250 mm
  • Frame height/thickness: 20 mm
  • Thread: 4x M6
  • Thread dimension : 330 x 330 mm

Type 1212

Dimension:

  • Outer Dimension 355 x 355mm
  • Inner Dimension 305 x 305 mm
  • Frame height/thickness: 25,5 mm
  • Thread: 4x M6
  • Thread dimension : 330 x 330 mm

Type 1515

Dimension:

  • Outer Dimension 450 x 450 mm
  • Inner Dimension 381 x 381 mm
  • Frame height/thickness: 25 mm
  • Thread: 4x M6
  • Thread dimension : 407 x 407 mm

Type 2020

Dimension:

  • Outer Dimension 584 x 584mm
  • Inner Dimension 508 x 508 mm
  • Frame height/thickness: 25,5 mm
  • Thread: 4x M6
  • Thread dimension : 533 x 533 mm

There is no further information

Products specifications
Attribute name Attribute value
Model Πλαίσια Τελάρων
