Eclipse B2 PLUS

Fast die-cutting, automatic reticular creasing and laser cutting in B2 format

Be the first to review this product

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Eclipse series automates the die-cutting process by integrating mechanical creasing into the continuous production flow, which is completed by laser cutting (or plotter stations).

Equipped with a pallet feeder with barcode recognition system, which starts the continuous and non-stop programming of the entire subsequent working process.

Eclipse B2 PLUS

With a processing speed of up to 3,000 sheets per hour, Eclipse B2 PLUS is the fastest machine in the Eclipse line-up.

It supports B2 formats and features four creasing cameras for maximum flexibility and accuracy. Automatic sheet feeding, fast format change (as little as 10 seconds), and extensive barcode integration make it ideal for large-scale, high-speed production.

Perfect for businesses with demanding die-cutting needs, Eclipse B2 PLUS combines industrial performance with refined automation in a compact footprint.

SKU: Petratto Eclipse B2 PLUS

Eclipse series automates the die-cutting process by integrating mechanical creasing into the continuous production flow, which is completed by laser cutting (or plotter stations).

Equipped with a pallet feeder with barcode recognition system, which starts the continuous and non-stop programming of the entire subsequent working process.

Eclipse B2 PLUS

With a processing speed of up to 3,000 sheets per hour, Eclipse B2 PLUS is the fastest machine in the Eclipse line-up.

Perfect for businesses with demanding die-cutting needs, Eclipse B2 PLUS combines industrial performance with refined automation in a compact footprint.

Products specifications

Attribute name	Attribute value
Model	Eclipse B2 PLUS
Sheet format	Max: 500 x 707 mm (B2) / Min: 520 x 520 mm
Media thickness	N-F+g up to 1.2 mm
Speed	Up to 3000 sheets/hour

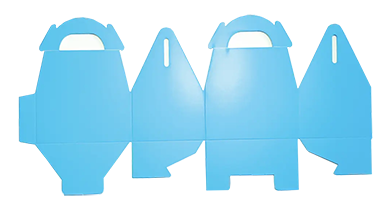

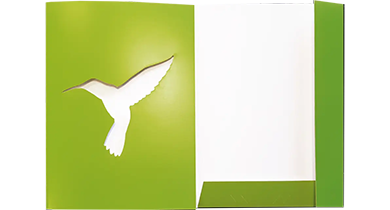

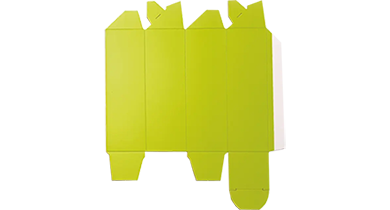

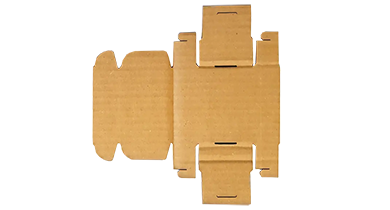

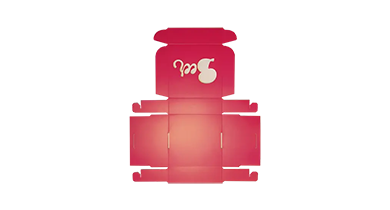

Processes supported	Laser cutting for commercial applications / Mechanical creasing + laser cutting (leaflets, greeting cards) / Cross mechanical creasing + laser cutting (calendars, boxes, cartons). Format change time: 10 seconds – 5 minutes
Feeder	Pile feeder with register, pallet sheet feeder with barcode reading for automatic job change (creasing, laser, stacking)
Creasing	4 crease position cameras. Self-programmable parallel creases. Self-programmable cross creases (continuous). Automatic rotation + cross creasing in 2 steps
Laser cutting	2 self-registration laser cameras. Suction sheet transport with calibrated steel cables. Laser type: CO₂ with Galvanic mirror. Registration by print marks or sheet edges. Simplified maintenance, with constant power output and NEP Technology (no sealed source laser).
Laser power (Watt)	350 – 550 – 750 – 1100
Blanking & stripping	Frame removal, blanking/stripping
Media output	Shingle/batch stacking. Pile stacking. Separate individual shape delivery (optional).
Dimensions (W x D x H)	7.50 x 3.00 x 2.10 m
Weight	5800kg
Software	Supported file types: PDF, EPS, PLT, DWG, DXF. Integrated CAD software. Auto notch positioning and modification. Automatic cut path optimization (compensating for material shrinkage). Pen association (speed & power). Job list management. Remote control capability (networked). Production monitoring and downtime reduction with external management software (optional)
