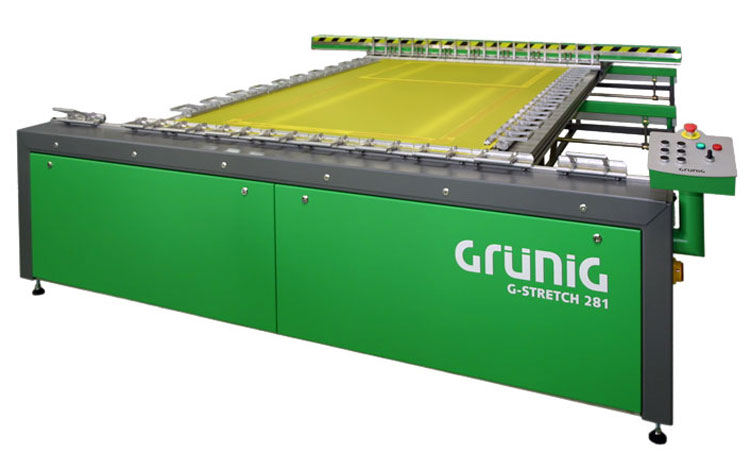

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

Picture of G-Stretch 281

G-Stretch 281

Stretching Machine

Be the first to review this product

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Quick facts

For maximum stretching surface 4000 x 10000 mm / 157 x 394 inch
High yield with a minimum of mesh consumption
Remote control for all the stretching functions
Adjustable stretching speeds for warp and weft directions
No contact between frame and mesh during stretching process
Easy setting of the desired stretching angle
Simultaneous handling of several screen frames
DUPLEX clamps sliding in V2A guideways
Option: Automatic stretching system via Touch-Screen terminal

SKU: G-Stretch 281

Quick facts

For maximum stretching surface 4000 x 10000 mm / 157 x 394 inch
High yield with a minimum of mesh consumption
Remote control for all the stretching functions
Adjustable stretching speeds for warp and weft directions
No contact between frame and mesh during stretching process
Easy setting of the desired stretching angle
Simultaneous handling of several screen frames
DUPLEX clamps sliding in V2A guideways
Option: Automatic stretching system via Touch-Screen terminal

There is no further information

Products specifications

Attribute name	Attribute value
Models	G-Stretch 270 (A1/A2/A3)
Screen format	Πλάτος γάζας: Πλάτος τραπεζιού (SB): 1500-4000 mm / Μήκος τραπεζιού (SL): 2000-10000 mm / Ύψος πλαισίου: 30-120mm
Frame profile thickness	20-300mm
Dimensions (W x D x H)	SB + 810 x SL + 1415 x 1040 mm
Power requirements	1x230+N+PE / 2x220+PE, 50/60 Hz (G-Stretch 281) / 1x230+N+PE / 3x220+PE, 50/60 Hz (G-Stretch 281A)
Permanent sound pressure level	<70 dB (A)
