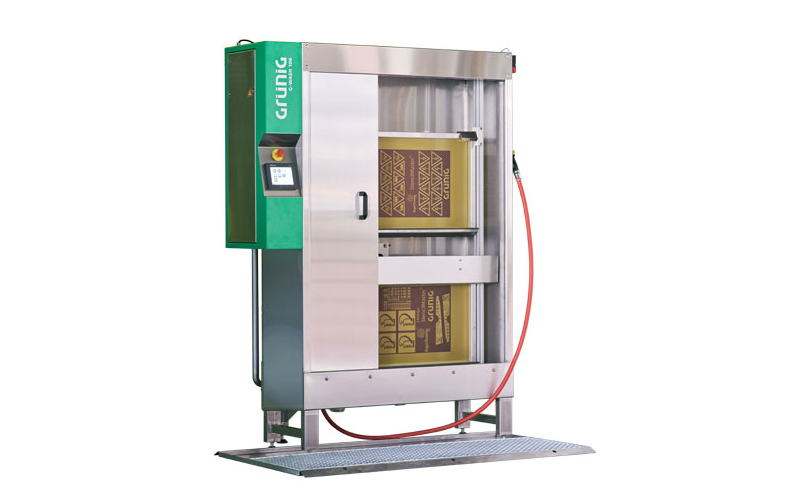

G-Wash 106

Developing machine

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Quick facts

PLUG & WASH construction method:
Unpack, set up, connect, develop
The machine is available in 5 standard sizes:
Screen height (SH): 1500 mm
Screen width (SB): 1000 - 2000 mm in increments of 250 mm
Two versions are available: A1 for pure clean water operation and A2 for ecological closed-circuit operation
Safe working procedures thanks to the closed washing chamber
Uncomplicated operation by means of a Touch-Screen Terminal
The washing pressure, exposure times, speed of the spraying carriage, the number of washing moves as well as several additional parameters are freely programmable.
More than 100 program slots are available for memorizing the washing programs
Powerful pump guaranteeing optimal development results
Electronically adjustable washing pressure between 5-12 bar (optional: up to 20 bar) Individually switchable nozzle bars for squeegee and printing sides
Individually switchable nozzle bars for squeegee and printing sides
Special Grünig nozzles made of stainless steel V2A with service cover, designed for maximum cleaning ease
The wide choice of options enables you to adapt the machine to your individual requirements
Universal screen fastening system designed for handling many different screen formats
Space-saving and compact construction
Front loader with sliding door
Robust construction of stainless steel V2A
Low-maintenance and user-friendly design
INDUSTRIE 4.0 READY (prepared for connection to G-GATEWAY)

SKU: G-Wash 106

Quick facts

PLUG & WASH construction method:
Unpack, set up, connect, develop
The machine is available in 5 standard sizes:
Screen height (SH): 1500 mm
Screen width (SB): 1000 - 2000 mm in increments of 250 mm
Two versions are available: A1 for pure clean water operation and A2 for ecological closed-circuit operation
Safe working procedures thanks to the closed washing chamber
Uncomplicated operation by means of a Touch-Screen Terminal
The washing pressure, exposure times, speed of the spraying carriage, the number of washing moves as well as several additional parameters are freely programmable.
More than 100 program slots are available for memorizing the washing programs
Powerful pump guaranteeing optimal development results
Electronically adjustable washing pressure between 5-12 bar (optional: up to 20 bar) Individually switchable nozzle bars for squeegee and printing sides
Individually switchable nozzle bars for squeegee and printing sides
Special Grünig nozzles made of stainless steel V2A with service cover, designed for maximum cleaning ease
The wide choice of options enables you to adapt the machine to your individual requirements
Universal screen fastening system designed for handling many different screen formats
Space-saving and compact construction
Front loader with sliding door
Robust construction of stainless steel V2A
Low-maintenance and user-friendly design
INDUSTRIE 4.0 READY (prepared for connection to G-GATEWAY)

There is no further information

Products specifications

Attribute name	Attribute value
Models	G-Wash 106
Screen format	Πλάτος τελάρου: 1000-1250-1500-1800 mm / Ύψος τελάρου: 1400 mm / Ύψος πλαισίου: 20-40mm
Frame profile thickness	20-300mm
Dimensions (W x D x H)	SB + 530 x 2SL + 2050 x 700 mm
Power requirements	1x230+N+PE / 2x110+PE, 50/60 Hz
Permanent sound pressure level	<70 dB (A)
