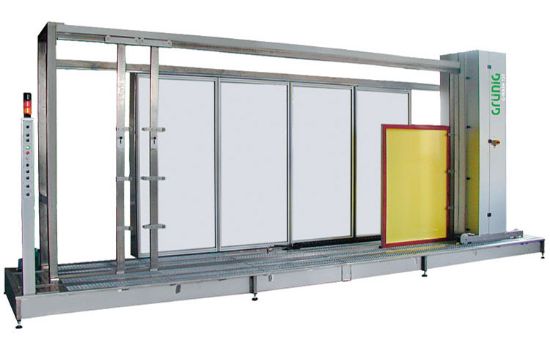

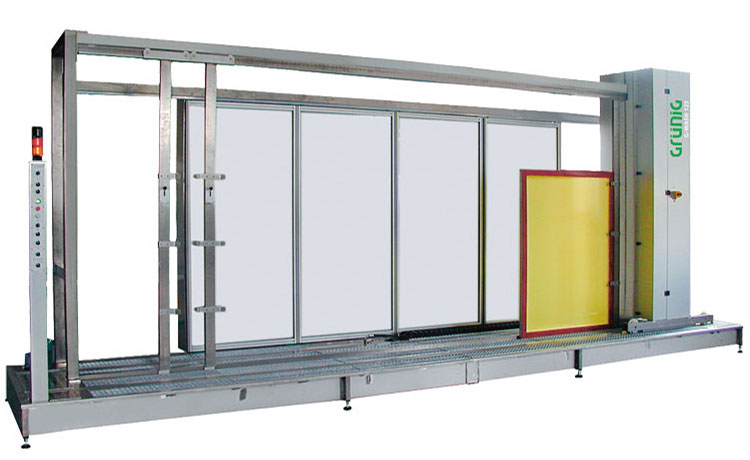

G-Wash 125

XL-Washing system

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Quick facts

For maximum screen format 4000 x 10000 mm / 157 x 394 inch
Open system especially designed for large-size formats
Accessible trough made of stainless steel V2A
Modular extension possible for the following processes: Developing, degreasing, decoating
Water pressure 10 bar, 30 bar (option P2) and 70 bar (option P3)
Oscillating nozzles guarantee a gentle developing
Special V2A nozzles with service cover, designed for ease of maintenance
Option: Waste water treatment system Recyclean

SKU: G-Wash 125

Quick facts

For maximum screen format 4000 x 10000 mm / 157 x 394 inch
Open system especially designed for large-size formats
Accessible trough made of stainless steel V2A
Modular extension possible for the following processes: Developing, degreasing, decoating
Water pressure 10 bar, 30 bar (option P2) and 70 bar (option P3)
Oscillating nozzles guarantee a gentle developing
Special V2A nozzles with service cover, designed for ease of maintenance
Option: Waste water treatment system Recyclean

There is no further information

Products specifications

Attribute name	Attribute value
Models	G-Wash 125
Screen format	Πλάτος τελάρου: 3000-9000mm / Ύψος τελάρου: 3000-4000mm / Ύψος πλαισίου: 30-50mm
Frame profile thickness	20-300mm
Dimensions (W x D x H)	Width: SB + 2900mm - Height: 1060mm - Depth: 1400mm
Power requirements	3x400+N+PE / 3x220+PE, 50/60 Hz
Permanent sound pressure level	<70 dB (A)
