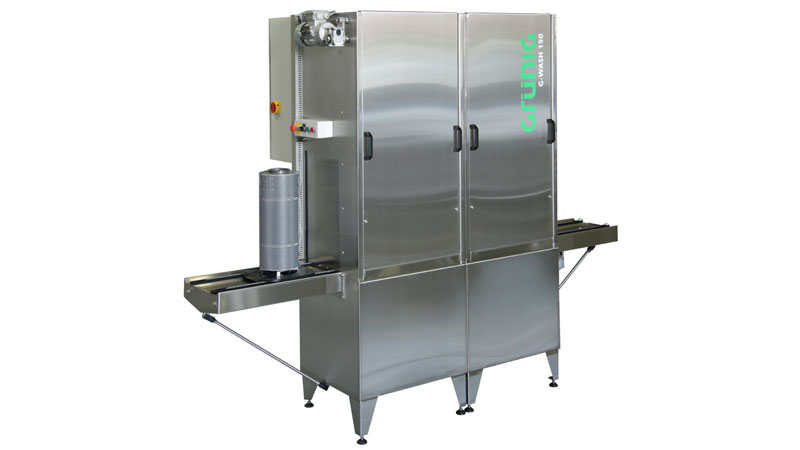

G-Wash 150

In-Line cylinder washing system

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Quick facts

Automatic through-put washing system for rotation cylinders
Max. cylinder format ø280 x 650 mm / ø11 x 25.5 inch
The modular construction ensures highest flexibility
Preliminary and subsequent cleaning in separate chambers
The integrated air blower system ensures minimal loss of chemicals
Designed for chemicals of the latest generation (flash point >55°C / 131°F, ATEX-compliant construction method)
Completely closed washing chambers made of stainless steel V2A
No leakage of solvent vapors during the washing process
IN-LINE throughput installation, synchronized cylinder transport
Programmable washing process
All the washing processes carried out with special Grünig nozzles for maximum ease of maintenance and reliable performance

SKU: G-Wash 150

Quick facts

Automatic through-put washing system for rotation cylinders
Max. cylinder format ø280 x 650 mm / ø11 x 25.5 inch
The modular construction ensures highest flexibility
Preliminary and subsequent cleaning in separate chambers
The integrated air blower system ensures minimal loss of chemicals
Designed for chemicals of the latest generation (flash point >55°C / 131°F, ATEX-compliant construction method)
Completely closed washing chambers made of stainless steel V2A
No leakage of solvent vapors during the washing process
IN-LINE throughput installation, synchronized cylinder transport
Programmable washing process
All the washing processes carried out with special Grünig nozzles for maximum ease of maintenance and reliable performance

There is no further information

Products specifications

Attribute name	Attribute value
Models	G-Wash 150
Screen format	Πλάτος κυλίνδρου: max 280mm / Μήκος κυλίνδρου: max 650mm / Εσωτερική διάμετρος: min 60mm
Frame profile thickness	20-300mm
Dimensions (W x D x H)	Width: 3860mm - Height: 1025-1540mm - Depth: 2370mm
Power requirements	3x400+N+PE, 50 Hz
Permanent sound pressure level	<70 dB (A)
