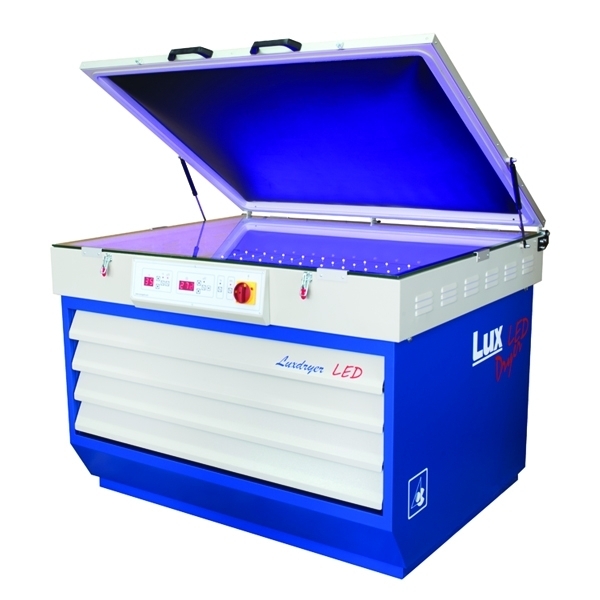

Lux Dryer LED

Machine suitable to expose screen printing screens

Be the first to review this product

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The LUXDRYER LED is a machine suitable to expose screen printing screen.The machine is equipped with special UV SPECIAL LEDS for faster screen exposure and maximum detail. The LUXDRYER LED is fully automatic and is equipped with a pressure meter for the vacuum to prevent accidental opening from screens.

Description

LCD control panel;
Exposure time controlled by a digital counter;
Fully automatic operation for vacuum and exposure;
Perfect and quiet vacuum;
UV Special LEDS for fast screen exposure;
Digital temperature control for drying cabinet;
Working temperature of drying cabinet – 15 to 50 degrees;
Drawers running smoothly in ball-bearing slides with end stop;
Drying cabinet with forced ventilation;
Yellow leds to prepare the job;
Capable to save up to 10 different programs;
Emulsion hardener program available as standard.

SKU: Lux Dryer LED

Description

LCD control panel;
Exposure time controlled by a digital counter;
Fully automatic operation for vacuum and exposure;
Perfect and quiet vacuum;
UV Special LEDS for fast screen exposure;
Digital temperature control for drying cabinet;
Working temperature of drying cabinet – 15 to 50 degrees;
Drawers running smoothly in ball-bearing slides with end stop;
Drying cabinet with forced ventilation;
Yellow leds to prepare the job;
Capable to save up to 10 different programs;
Emulsion hardener program available as standard.

There is no further information

Products specifications

Attribute name	Attribute value
Models	Lux Dryer LED
Screen format	LUX DR LED 0608: 60x80cm / LUX DR LED 0811: 80x110cm / LUX DR LED 1010: 100x100cm / LUX DR LED 1012: 100x125cm / LUX DR LED 1215: 120x150cm
Dimensions (W x D x H)	LUX DR LED 0608: 86x99x103cm / LUX DR LED 0811: 106x135x103cm / LUX DR LED 1010: 130x123x103cm / LUX DR LED 1012: 126z145z103cm / LUX DR LED 1215: 146x170x103cm
Power requirements	230/50V
Weight	LUX DR LED 0608: 150kg / LUX DR LED 0811: 210kg / LUX DR LED 1010: 250kg / LUX DR LED 1012: 250kg / LUX DR LED 1215: 350kg
