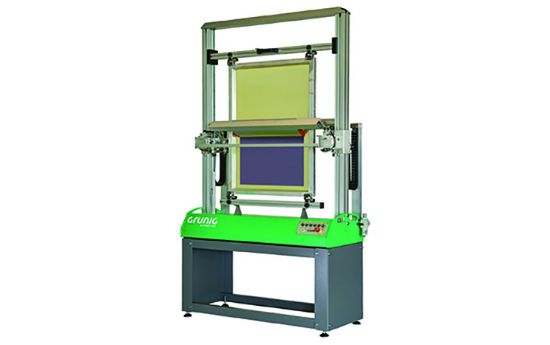

G-Coat 406

Automatic Coating Machine

Isporučiti do

Način isporuke

Ime

Procenjena isporuka

Cena

Nema mogućnosti isporuke

The machine is available in two sizes, for screens up to 700 x 1000 mm or 1000 x 1400 mm (25 x 39 or 39 x 55 inch)
“PLUG & COAT” construction: unpack, set up, coat
Top quality – low price
This machine provides for one-sided or double sided simultaneous screen coating.
To optimize the coating surface, the frame profile height can be adjusted within a range of 25 and 100 mm via a rotary knob on the control panel.
Safe reproducibility +/-1 micron
The machine has been constructed as a bench-top model; it can be operated on any work surface that offers sufficient stability.
To make sure that the machine can also be set up on the floor, an easy-to-mount sub-construction is available as an option.
Patented coating trough G-COAT 401 included

ID: G-Coat 406

The machine is available in two sizes, for screens up to 700 x 1000 mm or 1000 x 1400 mm (25 x 39 or 39 x 55 inch)
“PLUG & COAT” construction: unpack, set up, coat
Top quality – low price
This machine provides for one-sided or double sided simultaneous screen coating.
To optimize the coating surface, the frame profile height can be adjusted within a range of 25 and 100 mm via a rotary knob on the control panel.
Safe reproducibility +/-1 micron
The machine has been constructed as a bench-top model; it can be operated on any work surface that offers sufficient stability.
To make sure that the machine can also be set up on the floor, an easy-to-mount sub-construction is available as an option.
Patented coating trough G-COAT 401 included

Specifikacije proizvoda

Naziv atributa	vrednost atributa
Model	G-Coat 406
Oblik orama	SW screen width mm 700, 1000 / SH screen height mm 1000, 1400 / Frame profile height mm 25–100
Dimenzije (D x Š x V)	Width mm SW + 375 / Height mm SH + 500 / Depth mm 540
Električni zahtevi	Voltage 1 x 230V+N+PE / 1 x 110V+N+PE / Frequency Hz 50/60
