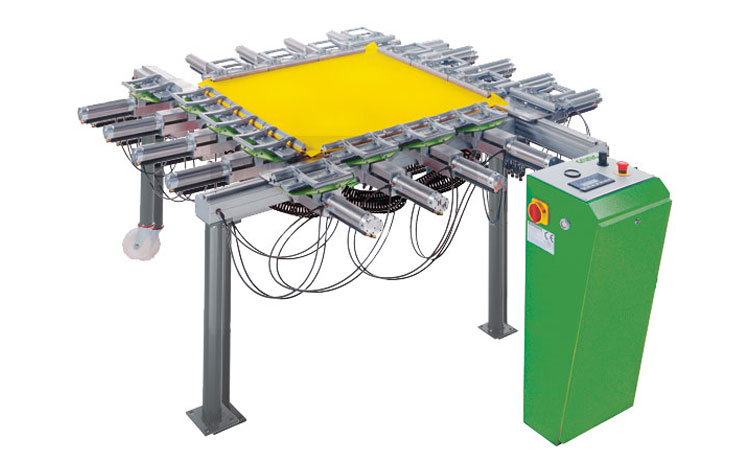

G-Stretch 215

Hydraulic stretcher

Budite prvi koji će napisati ocenu za ovaj proizvod

Isporučiti do

*

*

Način isporuke

Ime

Procenjena isporuka

Cena

Nema mogućnosti isporuke

G-Stretch 215

Hydraulic stretcher

Maximum frame size 3000x3000 mm.
Direct adjustment of the machine size to the frame size
Automatic pre-stretching of the frames
Dual-circuit hydraulic control panel
DUPLEX hydraulic clamps sliding on V2A stainless steel guides
No contact between frame and gauze during stretching
Highly precise and reproducible air stretching
Carrier that allows simultaneous stretching of many small frames
Optional: Automatic stretching system with up to 50 programs

ID: G-Stretch 215

G-Stretch 215

Hydraulic stretcher

Maximum frame size 3000x3000 mm.
Direct adjustment of the machine size to the frame size
Automatic pre-stretching of the frames
Dual-circuit hydraulic control panel
DUPLEX hydraulic clamps sliding on V2A stainless steel guides
No contact between frame and gauze during stretching
Highly precise and reproducible air stretching
Carrier that allows simultaneous stretching of many small frames
Optional: Automatic stretching system with up to 50 programs

Nema više informacija

Specifikacije proizvoda

Naziv atributa	vrednost atributa
Modeli	G-Stretch 215 & G-Stretch 215A
Oblik orama	Πλάτος τελάρου (SB): 750-3000 mm / Μήκος τελάρου (SL): 750-3000 mm
Debljina profila rama	20 - 70mm (G-Stretch 215) / 20 - 50mm (G-Stretch 215A)
Dužina hoda stezaljke	115 mm
Dimenzije (D x Š x V)	2SL + 80 x 2SB + 80 x 860 mm
Električni zahtevi	1x230+N+PE / 1x110+N+Pe V, 50-60 Hz (για G-Stretch 215A)
Dovod vazduha	Pressure: 9 Bar / Air consumption: 5-15 lt/min
Permanentni nivo zvučnog pritiska	<70 dB (A)
